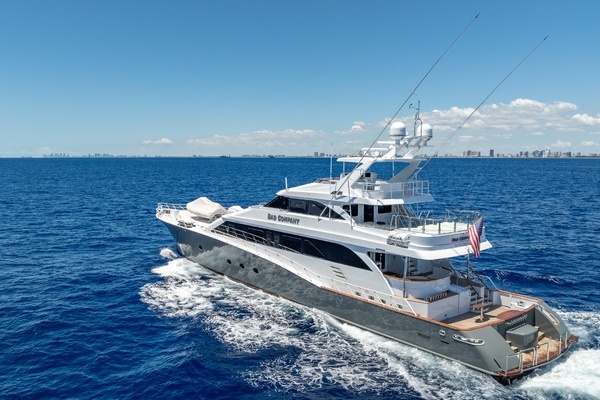

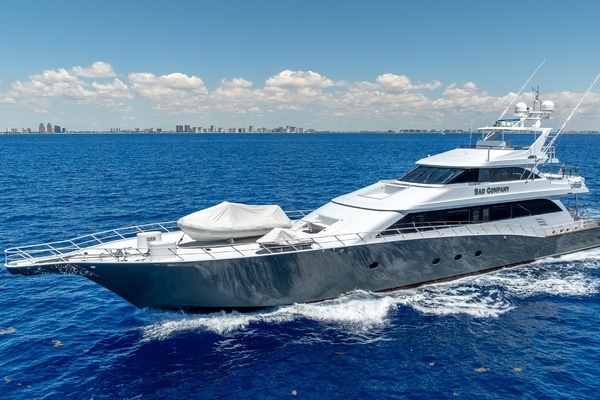

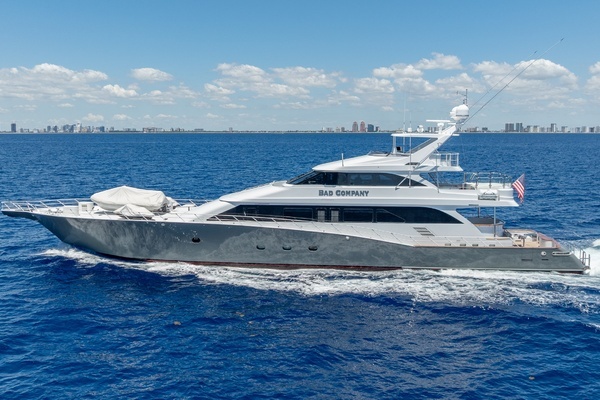

1998 Trinity Yachts "BAD COMPANY"

MAIN SPECIFICATIONS

Length Overall: 144' (43.9m)

Length at Waterline: 123.9' (37.8 m)

Beam: 27' (8.2m)

Draft: 7' (2.13 m) max

Year Completed: 1998

Model Year: 1998

Refit: 2018

Type: Sport Fisherman

HIN: TYY12608J899

Gross Tonnage: 311 GT ITC , 168 GRT

Net Tonnage: 93 NT ITC , 128 NRT

Displacement: 475,000 lbs

Hull Config: Monohull semi-displacement

Guests: 11

Crew: 8

CONSTRUCTION

Builder: Trinity Yachts

Naval Architect: Doug Sharp, Sharp Design

Exterior & Interior Design/Stylist: Doug Sharp Design

Hull Material: Aluminum

Deck Material: Teak overlay (cockpit, mezzanine, upper deck, flybridge, swim platform); painted nonskid (foredeck, side decks)

SPEED

Maximum: 26 kts = 190 Gal per hour each engine

Cruising: 23 kts = 120 gal per hour each engine

Economical: 14 kts = 53 gal per hour each engine

Range: 2300nm @ 10 knots

CAPACITIES

Fuel: 9250 gal

Water: 2400 gal

Black Water: Total 388gal – Fwd Tank 118/Aft Tank 270

Grey Water: Total 170gal – Fwd Tank 73/Aft Tank 97

Lube Oil Capacity: 184gal

Waste Oil Capacity: 193gal

CLASSIFICATION & CERTIFICATIONS

Flag: USA

ON : 1074457

IMO: 8980268

Classification: ABS

MAIN ENGINES

Engine Type: 2 x MTU 12V4000M93L

Horsepower: 3,460 hp each

Engine Serial Numbers: 526109429 (Port), 526109425 (Stbd)

Main Engine Hours (Port): 3,250

Main Engine Hours (Stbd): 3,221

GENERATORS & ELECTRICITY

Output: 65 kW, 120/208 VAC, 3-phase, 60 Hz, 225 A, 1,800 RPM

Generators: Northern Lights / John Deere M65T13-65kW

Generator Fuel Consumption: 2.5gal/hour

Port Generator Hours: 1,091

Starboard Generator Hours: 1,112

Shore power: ASEA master/slave converters; input 170–520 VAC, 40–70 Hz, 3-phase, 200 A max

Generator Starting: Battery

BATTERIES

Batteries: 2 x Main engine start

Generator Starting: 2 x generator start

Emergency: GMDSS

PROPULSION & STEERING

Drive: EMI electrohydraulic power steering

Gearboxes for Main Engines: Remote hard mounted to the main longitudinals

Stabilizer: Naiad model

Gyro Stabilizer: 2 x Seakeeper model 26, 1 x Seakeeper model 35

Steering System: EMI electrohydraulic power system with an AC electric hydraulic power pack

OTHER MACHINERY

Water Makers: 2 x Watermaker Inc 1400 gal per day

Water Softeners: Superior Yacht Water Filtration System

Bow Thruster: American Bow Thruster 75 hp electric

Fuel Separator and Filtration: Alpha Laval MAB-103B-24

Sewage System: Hamman 1cbm/hr

Fresh Water System: Superior Yacht Water Filtration System

Oily Water Separator: N/A

Air Compressor: 2 (67300 BTUH @ 25 degrees F saturated suction

temperature/2397 CFH displacement)

Air Conditioning: Model 4NC-202(Y) – 2 x Blitzer 4NE-20-2NU Compressors, 2 x Weiland Onda Heat

Exchanges, Guge Marine Logic

Davit: Marquipt Tender Lift 2500

PILOTHOUSE

SAT COM: Sailor GMDSS Inmarsat C terminal

Telephone System: Panasonic PABX; multifunction ship's phones throughout

SSB: Sailor 6301 DSC HF/MF with Sailor 6103 alarm panel

VHF: 2 × Sailor 6222 DSC VHF; 2× Sailor handheld VHF Sailor model C4901 VHF/DSC Transceiver

Cellular Phone System: Panasonic PABX model KA-TA624 Advanced Hybrid telephone system

Navtex: Furuno NX700 with Thrane & Thrane printer

NAVIGATION SYSTEMS

Radar: 2 × Furuno open arrays (Model RSB-096)

Gyrocompass: Anschutz digital gyro with repeater

Magnetic Compass: Ritchie (flybridge)

Auto Pilot: Anschutz PilotStar D

Depth Sounder: Furuno FCV-1200L color video sounder

GPS: Furuno LCD GP

Ships Computer: PC with Microsoft wireless keyboard

Electronic Charts: 2 x Nobeltec PC

Wind/Speed Log: B&G Hydra 2000 system; 2× B&G 20/20 CD LCD displays

ENTERTAINMENT SYSTEMS

Main Salon / Dining - Console-mounted TV on electric lift; Samsung Blu-ray; Control 4 system

controller; 4-channel amplifier; Sony AV tuner; overhead Linn speakers

Sky Lounge - Flat screen TV on electric lift; Samsung Blu-ray; Denon AV surround receiver; 2× zone

amplifiers; Control 4 system; overhead speakers

Aft Deck - Sunbrite outdoor TV with cover and soundbar

Galley Lounge - LG LED TV; overhead speakers

Owner's Stateroom - LED TV behind motorized retractable art panel; Denon AV receiver; Apple TV;

overhead Linn Sekrit speakers; subwoofer

Guest Staterooms - Individual TVs; overhead speakers

Flybridge – 4 × overhead Poly-Planar speakers

Sun Deck - Marinized overhead speakers

Satellite TV - Starlink RV + Starlink Maritime antennas

MAIN GALLEY EQUIPMENT

Cooktop: Miele glass top (5 burner)

Oven: 2 × Miele electric

Microwave: GE

Refrigerator/ Freezer: 2 × Sub-Zero side-by-side

Additional Refrigerator/Freezer: Sub-Zero

Dishwasher: Bosch undercounter

CREW GALLEY/ MESS

Washing Machines/Dryers: Miele Professional stacked washer / dryer

LAUNDRY

Washing Machines/Dryers: Miele washer; Miele dryer

DECK EQUIPMENT

Anchor Windlass: 2 × Maxwell VWC6000 vertical with warping capstans

Aft Warping Capstans: 2 x Maxwel VWC6000 vertical

Anchors: 240 lb CQR on 8 shots of 5/8" galvanized U2 chain (Port), 110 kg (242 lb) galvanized Bruce-type on 5 shots of 5/8" galvanized U2 chain (Stbd)

Anchor Chain: 5/8” galvanized

Boat Crane and Davits:Marquipt Tender Lift 2500 hydraulic

Passarelle: Hydraulic (dedicated power pack in steering compartment)

TENDER & TOYS

-AB Inflatables 19VST (2016) 19' fiberglass hard-bottom inflatable

-2014 Yamaha Wave runner 3-person PWC

-2018 SeaDoo Spark

-2018 Kawasaki Stand up jet ski

Note: Subject to change and/or negotiation during the buying process.

SECURITY

CCTV System: SCW CCTV

Cameras: Samsung Hikvision

Monitors: Samsung

FIRE FIGHTING EQUIPMENT

Fire Control System: Kidde X3 100lbs CO2 suppression system

Fire Extinguishers: 3x Buckeye ABC – 2x 10lbs 1x 5lbs

10x Ansul ABC – 6x10lbs, 1x20lbs, 3x 5lbs

4x ABS – CO2 2kgs

6x Kiddie ABC – 1x 20lbs, 2x10lbs, 1x 2.5lbs, 2x1.5lbs

1x Lalizas ABC 1kg

7x Amerex – 2x 2.5gal foam, 2x5lbs CO2, 1xABC 5lbs, 1x ABC 10lbs, 1x Halotron 5lbs

2x Eversafe – 1x 9lts Foam, 1x 5kg CO2

Alarms: AMS System

SAFETY EQUIPMENT

Life Rafts: 2 x 16-person Viking canister life rafts on hydrostatic releases SOLAS A pack

Life Rings: 4 x Man overboard throw rings (2 with smoke strobes, 1 with strobe buoy, 1 with heaving line)

EPIRBS: McMurdo EPIRB with hydrostatic release

Flares: Orion flare kit with a 12 ga. Handgun, (4) red flare shells

Medical Equipment: MedAire Mini med pack, MSOS - Distant Ocean Medical Kit,

MedAire Global Med Kit 10 trauma and medications kit

Owner's Stateroom (aft) - King bed, nightstands, reading lamps, portlights, lounge, dressing table with flip-top mirror, his & her walk-in cedar-lined wardrobes.

His & her heads with toilets, vanities with wood sinks, mirrored walls, large walk-in marble shower with rain head and bench.

Port Forward Guest - Full bed, overhead hatch to foredeck, storage drawers, nightstands, entertainment center; cedar hanging locker.

Ensuite head with vanity, toilet, stone tile floor, shower with bench, skylight.

Starboard Forward Guest - Full bed, overhead hatch to foredeck, storage drawers, nightstands, entertainment center, cedar hanging locker.

Ensuite head with vanity, toilet, stone tile floor, shower with bench, skylight.

Port Mid Guest - Full bed, portlight, drawers, entertainment center, cedar hanging locker.

Ensuite head with vanity, toilet, stone tile floor, shower with bench, skylight.

Starboard Mid Guest - 2 single beds (inboard/outboard) + Pullman, portlight, drawers, entertainment center, hanging locker.

Ensuite head with vanity, toilet, stone tile floor, shower with bench, skylight.

2026

• New E10 Power board for Gyro compass
• Gyro service
• Replace wave runner engine with reconditioned engine due to corrosion
• Rebuilt electric steering motors
• Rebuilt hydraulic steering pumps
• MTU 300hr service – Valve Lash, Valve clearance, Cylinder cut out test and injector tests
• Replace Rexroth main engine control display on Starboard wing station
• Service Aft Sea keeper

2025

• Guest Cabin AV upgrade – removal of all existing equipment and replacement with Smart monitors and Apple TV boxes in all cabins except Master Cabin
• Removal of KVH V-Sat Antenna and installation of Starlink RV Antenna
• Replace Matrix switcher for switching bridge screens to different equipment
• Jet Ski Service for Wave Runner and Spark
• Rebuild both Jets black water pumps
• Strip and varnish aft deck capping rails
• Descale engine room raw water system
• Replace all hydraulic hoses and fittings for steering gear
• Rebuild steering rams
• Replace Power steering hydraulic module for steering gear
• Replace A/C Chiller condensers
• Rebuild A/C compressors
• Complete A/C air handler servicing
• Flush and clean A/C chilled water loop, refill with Glycol solution
• Remove corroded aluminum raw water crossover pipes in engine room and replace with new Cooper nickel pipes
• Replace Port wing station Rexroth engine controls
• Annual Fire & Safety equipment service
• Replace 2 x SCBA equipment
• Annual Medical equipment service
• Cockpit lighting replacement – renew wiring and light fixtures

2024

• Remove aft underwater lights and repair hull due to corrosion – American Marine repair
• Repair 3 hull plate corrosion issues on bow – American Marine Repair
• Fuel tanks cleaned and inspected – Coastal Tank cleaners
• Aft water tank cleaned and recoated – Costal Tank Cleaners
• Fuel tank repair – repair previous repair on center fuel tank wall – EYS
• Bilge suction pipework repairs – remove damaged bilge suction lines from fuel tanks and replace with new pipe – EYS
• Repair fire main in guest cabin - EYS
• Replace aft deck counter top – Finest Marine Carpentry
• 3D scan and recondition both props – F&J Propellers
• Replace Galley extraction hood
• Running gear inspection – High Seas
• Shaft and Prop crack die check – High Seas
• AMS Computer upgrade
• Fly Bridge Monitors serviced
• Repaint Aft Cockpit, Bulwarks and stair risers
• Repaint Bow pulpit and various hull blisters
• Repaint grey topcoat under transom
• Descale engine room raw water system
• Rebuild Anchor windlasses
• Rebuild Ships davit, remove from vessel, replace all bearings, paint,replace cable reinstall on vessel
• Stabilizers – remove units from vessel, rebuild hydraulic rams, replace all bearings and seals, reinstall
• Remove and service sonar
• Replace all hoses on hydraulic passerelle
• Bow thruster service
• A/C Air Handler service – begin to remove and clean all air handlers around vessel
• Replace Rexroth main engine control display in bridge
• Service all 3 sea keepers
• Annual Fire & Safety equipment service
• Annual medical equipment service
• Main engine start batteries replaced
• Generator start batteries replaced
• House batteries replaced
• Emergency 24v batteries replaced

2023

• Wifi Network rebuilt, new Pepwave network installed
• Removal of KVH TVRO Antenna and replace with Maritime High Performance Starlink Antenna
• Replace Nobel Tec Nav PC
• Repair and rebuild NEMA 2000 network in bridge
• QNAP NAS Computer network server installed
• Gyro Compass service
• Jet Ski Service for all 3 ski’s
• Main Engine and Gear box heat exchanger service
• Port side crew door – remove door and replace rollers, adjust hinges for smother operation
• Aft Sliding door – replace roller and belt from motor to door
• Service hydraulic power pack for ships davit
• Main engine valve lash adjustment and cylinder cut out test
• Replace main engine primary and secondary fuel filters
• Replace injectors B6,B2, A5 port main engine
• Replace injectors A5,B2, B5 starboard main engine
• Annual Fire & Safety equipment service
• Annual Medical equipment service
• Bow thruster motor service

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
