1986 Catalina 38 "JAZZ"" For Sale

1986 Catalina 38 "JAZZ"

Summary

Introducing 'Jazz' a Catalina 38, a classic sloop from 1986 that embodies timeless elegance and performance. With an overall length of 39.07 feet, this vessel offers a spacious and comfortable sailing experience. The hull is crafted from durable fiberglass, ensuring both strength and longevity on the water. The Catalina 38 is designed for those who appreciate quality craftsmanship and reliable sailing capabilities. Its sleek lines and well-thought-out design make it an attractive choice for cruising enthusiasts.'Jazz' is currently operating as charter boat for six passengers or less. She's rigged and ready for the next adventure.Equipped with essential features, this boat is ready for adventure and charters.Jazz is currently and actively being used as a charter vessel by a local charter company.The thoughtful layout provides ample space for relaxation and enjoyment while sailing. Whether you're navigating coastal waters or enjoying a leisurely day on the lake, or taking passengers on a harbor cruise, the Catalina 38 promises a delightful experience. Discover the joy of sailing with the JAZZ, where every journey becomes a memorable adventure.

Atlantic Yacht & Ship, Inc. is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Intracoastal Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

If you are looking at yachts for sale, thinking about selling your yacht or need service for your yacht, it is always wise to have an experienced broker from Atlantic Yacht and Ship to represent your interests.

L.O.A38′2″

L.W.L.30′3″

Beam11′10″

DraftSTD6′9″SHOAL4′11″

BallastSTD6850 LBSSHOAL7650 LBS

DisplacementSTD15,900 LBSSHOAL16,700 LBS

Displ/LengthSTD257SHOAL269

SA/DisplSTD16.2SHOAL15.6

Theoretical Hull Speed–7.4 knots

Sail Area, Rated (SQ. FT.)P44.00

Mainsail253I49.80

100% foretriangle386J15.50

Total (100% fore)639E11.50

Weight of Sail Cloth (Recommended)

Main7.75 oz

130% genoa7.25 oz

150% genoa7.25 oz

spinnakertri-radial0.75 oz

1.5 oz

Ice Box Capacity5.5 cu. ft.

Water Tank Capacity Std35 gal + 6 gal water heater = 41 gal

Holding Tank Capacity21 gal

Fuel Tank Capacity35 gal

Est. Consumption.75 gph

Distance From Waterline(DWL) To Masthead56.0

Common Ratings:PHRF114IOR28.8 EST

Berths:2 Doubles2 Singles

Headroom Main Cabin6’3″

Std. Engine – Universal model 30, 68 cu. in., 3 cylinder r.w. cooled,

2:1 reduction gear, std. propeller – 15″D x 13″P

2 blade, 1″ shaft

Theoretical Hull Speed – 7.5 knots

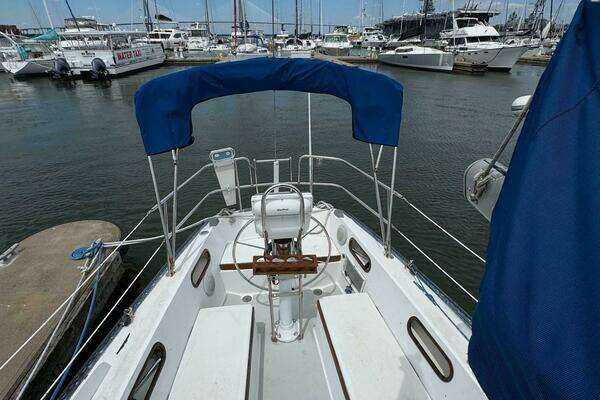

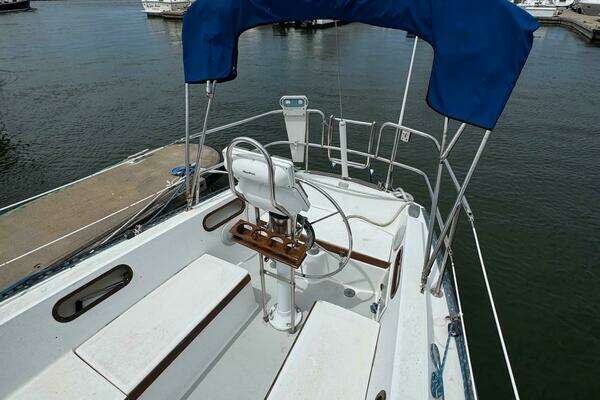

Std Pedestal Steering w/32″ diameter wheel

Ritchie Sp. 5 Compass, engine controls

The boat was originally designed as Sparkman & Stephens design #2094-C2 for Yankee Yachts and produced as the Yankee 38, but that company only produced 30 examples between 1972 and 1975, before going out of business. Frank V. Butler purchased the molds and modified the design for production by his company, Catalina Yachts. The changes Butler incorporated included a new deck and cabin roof design, a taller rig and a balanced spade rudder, replacing the original skeg-mounted rudder.

The Catalina 38 is a recreationalkeelboat, built predominantly offiberglass, with wood trim. It has amasthead sloop rig withaluminum spars, araked stem, a raised counterreverse transom, an internally mounted spade-typerudder controlled by awheel and a fixed fin standard draft or shoal draftkeel. It displaces 15,900lb (7,212kg) and carries 6,850lb (3,107kg) of ballast.

The boat has a draft of 6.80 ft (2.07 m) with the standard keel and 4.90 ft (1.49 m) with the optional shoal draft keel.

The boat is fitted with a Universal 30HP - 3 Cylinder diesel engine for docking and maneuvering. The fuel tank holds 25 U.S. gallons (95 L; 21 imp gal) and the fresh-water tank has a capacity of 55 U.S. gallons (210 L; 46 imp gal).

The design has sleeping accommodation for five or six people. There is a bow cabin with a "V"-berth, two settee berths in the main cabin, including a U-shaped dinette settee and an optional quarter berth aft on the starboard side. The galley is U-shaped and is on the port side, at the foot of the companionway steps. It includes a two-burner stove, an icebox and a double sink, with a pressurized water supply. The navigation station is to starboard, opposite the galley. The head is forward on the port side and features a shower, with a teak grating. The cabin features oiled teak trim.

Ventilation is provided by a main cabin skylight and a bow cabin hatch.

There is ananchor locker in the forepeak. Thehalyards are hoisted by two winches on the cabin roof. There is amainsheet traveler also mounted on the cabin roof. Thegenoa hassheet tracks on the bulwarks and primary winches in the cockpit.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
